Power Up Overleaf with TeXRA: A Git-Based Workflow ​

Overleaf is the go-to platform for collaborative LaTeX writing. But what if you could combine its convenience with the advanced AI editing, local tool integration (like latexdiff), and VS Code power offered by TeXRA? You can, using Overleaf's Git integration!

This guide outlines a workflow to clone your Overleaf project, leverage TeXRA locally in VS Code, and seamlessly sync your changes back. Get the best of both worlds: Overleaf for collaboration, TeXRA for AI-powered local editing.

Why Bridge Overleaf and TeXRA? ​

  • AI Superpowers: Apply TeXRA's specialized agents (correct, polish, draw, paper2slide, etc.) locally.
  • Local Tooling: Use latexdiff for precise change tracking, local compilation for previews.
  • VS Code Environment: Benefit from VS Code's features and extensions (like LaTeX Workshop).
  • Robust Git: Employ granular version control, branching, and offline work locally.

Prerequisites ​

  • Overleaf account with Git access enabled for your project (check Overleaf plans).
  • Git installed locally (git-scm.com).
  • TeXRA installed in VS Code (Installation Guide).

Workflow Steps ​

1. Clone Your Overleaf Project ​

  1. In VS Code, open the command palette (Ctrl/Cmd+Shift+P) and run TeXRA: Clone Overleaf Project.
  2. Paste the Overleaf project URL or 24-character project ID when prompted.
  3. Enter your Overleaf Git token (it begins with olp_). TeXRA saves it to VS Code's secret storage so future clones can reuse it.
  4. The command runs git clone directly into your workspace root so the cloned project becomes the repository you're working in. Make sure that folder is empty before starting.

Token storage: Reset the cached token anytime via the VS Code command Developer: Clear Secret Storage.

Option B: Manual terminal fallback ​

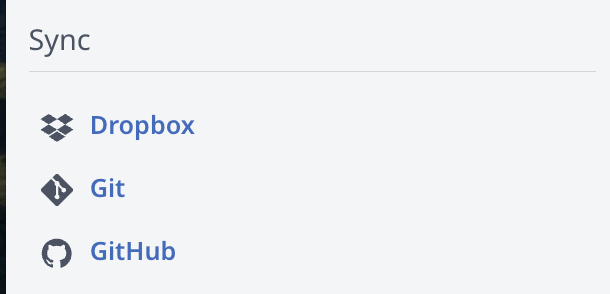

  1. Overleaf: Go to your project > Menu > Git. Copy the Git clone URL (https://git.overleaf.com/YOUR_PROJECT_ID). Overleaf Git Menu
  2. Local Terminal: Navigate to your desired local directory and run:
    bash
    git clone https://git.overleaf.com/YOUR_PROJECT_ID your-local-folder
    (Enter Overleaf credentials if prompted).

2. Edit Locally with TeXRA in VS Code ​

  1. Open your-local-folder in VS Code.
  2. Use TeXRA as usual:
    • Select files, agent, model.
    • Write instructions.
    • Execute ().
    • Review outputs (*_r0_*.tex, etc.).
    • Use latexdiff () or merge ().
    • Leverage features like auto-extract () and tool options ().
    • Optionally use LaTeX Workshop for local previews (Setup).

3. Commit Local Changes ​

As you work, commit changes frequently using VS Code's Source Control () or the terminal:

bash
# Stage changes (e.g., all modified files)
git add .
# Commit with a descriptive message
git commit -m "Refined methodology section using TeXRA polish"

4. Sync Back to Overleaf ​

  1. (Recommended) Pull: Fetch and merge any changes made directly on Overleaf since your last pull:
    bash
    git pull
    Resolve any merge conflicts locally using standard Git tools.
  2. Push: Upload your local commits to Overleaf:
    bash
    git push
    Refresh Overleaf in your browser to see the synced changes.

Important Considerations ​

  • Merge Conflicts: The biggest potential issue. Pulling changes from Overleaf before pushing your local work is the best way to minimize complex conflicts.
  • Authentication: Git may occasionally re-prompt for Overleaf credentials.
  • Large Projects: Be mindful of potential Overleaf Git size limitations.

This Git-based workflow empowers you to enhance your Overleaf projects with TeXRA's powerful local AI and tooling capabilities, offering a flexible and efficient development cycle.
